Description

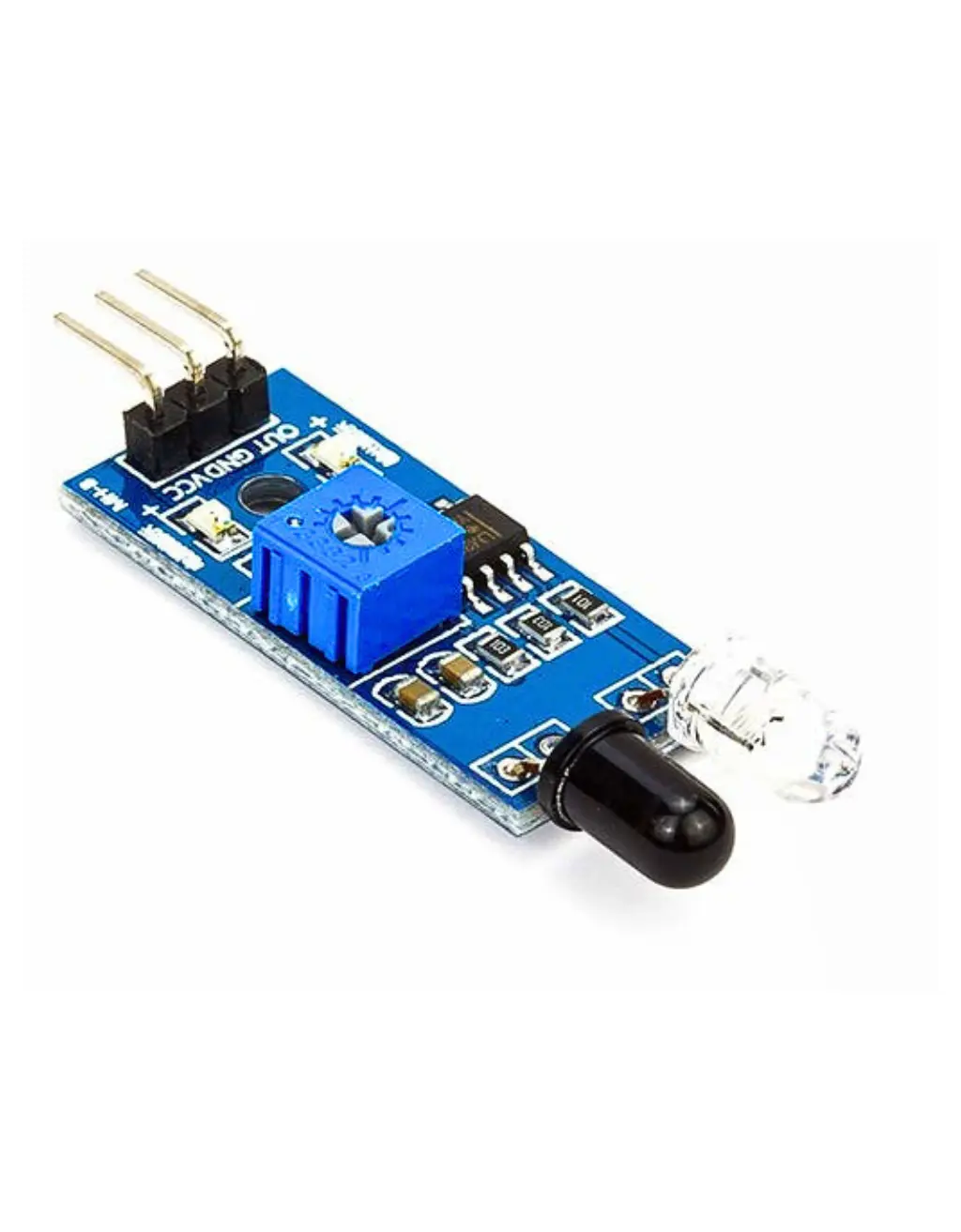

The IR Infrared Obstacle Sensor Module is a simple and reliable sensor used for detecting objects in front of it using reflected infrared light. Commonly used in robot cars, obstacle-avoiding bots, and automation systems.
It features an infrared transmitter and receiver pair that detect obstacles by reflection. The onboard potentiometer lets you adjust the detection range, and it provides a simple digital output for easy microcontroller integration.
Perfect for use with Arduino, ESP32, Raspberry Pi, and other development boards.
Available now from Dream RC — Bangladesh’s go-to for robotics and IoT components.
⚙️ Product Features & Specifications
| 🔧 Feature | 📌 Details |
|---|---|
| 🌟 Sensor Type | Infrared Obstacle Avoidance |
| 👁️ Detection Range | 2 cm – 30 cm (adjustable) |
| ⚡ Operating Voltage | 3.3V – 5V DC |
| 🔌 Output Type | Digital (0 or 1) |
| 🎛️ Adjustment | Onboard Potentiometer |
| 💡 IR Components | IR LED Transmitter + Photodiode Receiver |
| 🔗 Interface Pins | VCC, GND, OUT |
| ⚙️ Response Time | < 500 µs |
| 🔄 Module Type | Active Low Output |
| 📏 Dimensions | Approx. 48 mm x 14 mm x 8 mm |
| ⚖️ Weight | Approx. 5g |
| 💻 Compatibility | Arduino, ESP32, STM32, Raspberry Pi |
📦 Package Includes
1 × IR Infrared Obstacle Avoidance Sensor Module
