Description

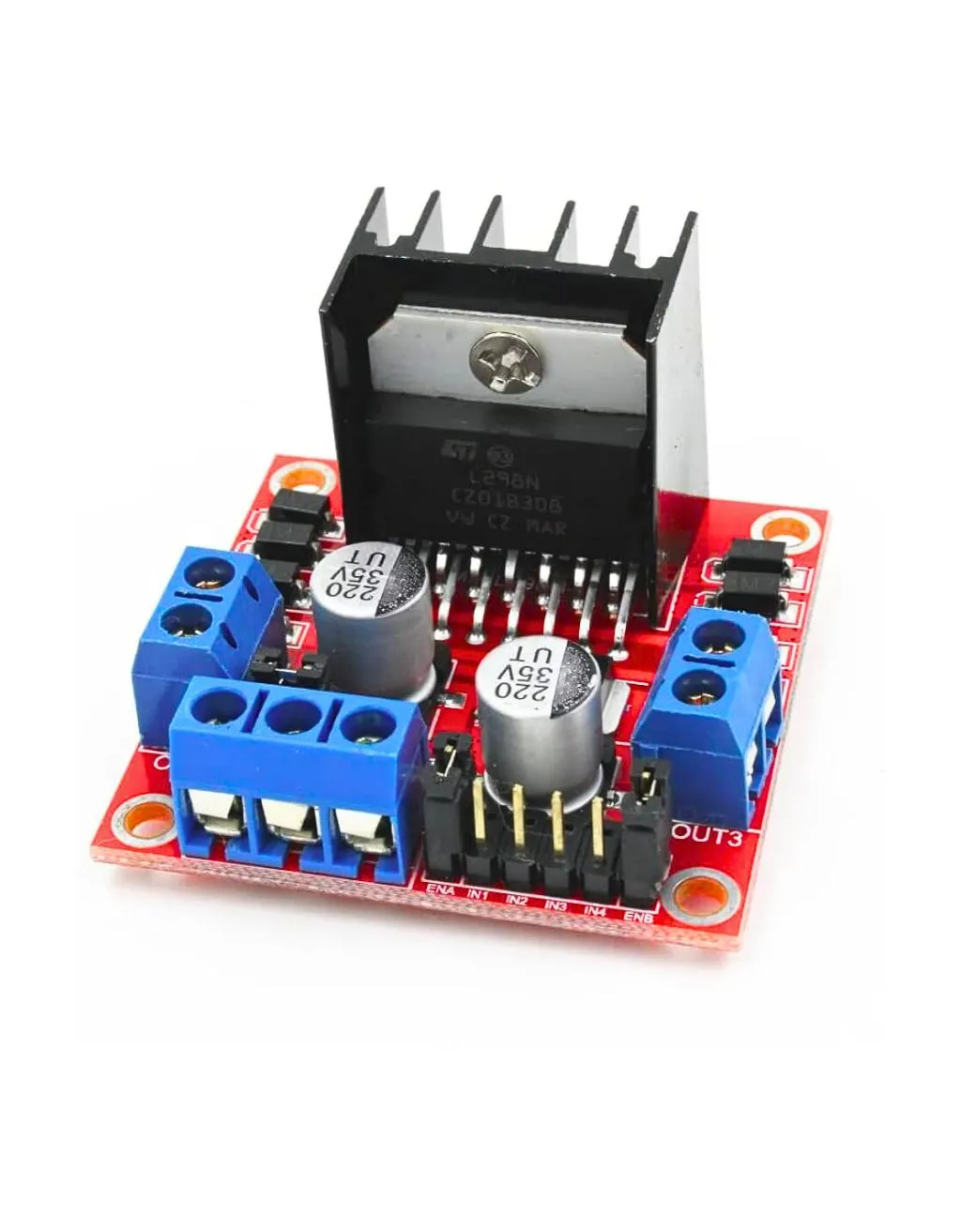

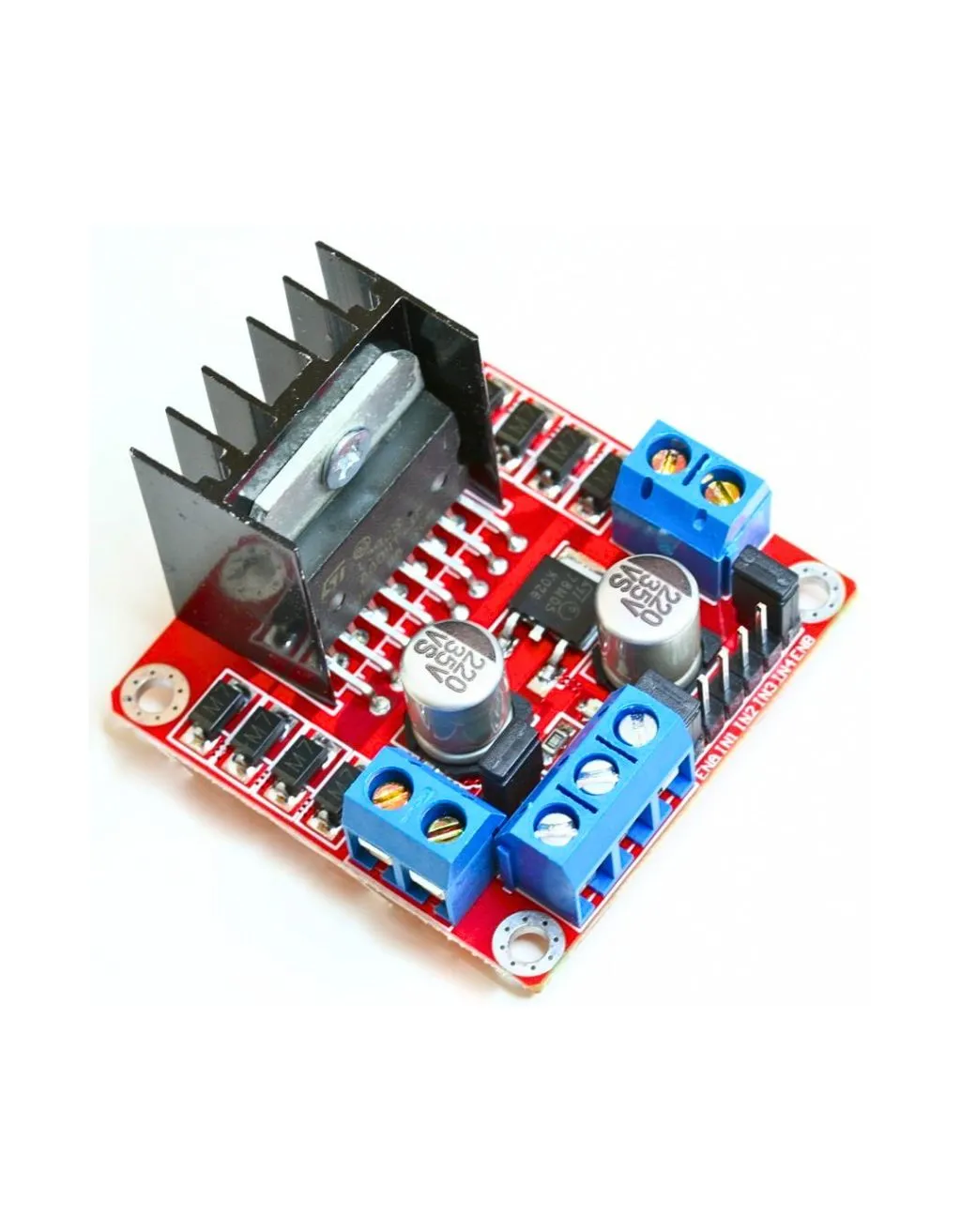

The L298N Dual H-Bridge Motor Driver Module is a powerful and versatile board used to drive DC and stepper motors in robotics and automation projects. It allows direction and speed control of two DC motors or one stepper motor simultaneously.
It features a built-in 5V regulator, onboard heatsink for thermal protection, and screw terminals for easy motor and power connections. The module is compatible with Arduino, ESP32, Raspberry Pi, and other development platforms.
Whether you’re making a robotic car, a CNC project, or an automated system — the L298N is your go-to motor driver. And from Dream RC, you get the best price in Bangladesh.
⚙️ Product Features & Specifications
| 🔧 Feature | 📌 Details |
|---|---|
| 🔁 Motor Driver IC | L298N Dual H-Bridge |
| ⚡ Operating Voltage | 5V – 35V DC |
| ⚙️ Motor Control | 2 x DC Motors or 1 x Stepper Motor |
| 🔋 Output Current | 2A per channel (max) |
| 🌡️ Heat Sink | Yes (for cooling and performance) |
| 🔧 Built-in Regulator | 5V (can power Arduino if jumper enabled) |
| 🎮 Control Logic | 5V TTL (IN1, IN2, IN3, IN4, ENA, ENB) |
| 🧩 Compatibility | Arduino, ESP32, Raspberry Pi, etc. |
| 📏 Dimensions | Approx. 43 mm x 43 mm x 27 mm |
| ⚖️ Weight | Approx. 26g |
📦 Package Includes
1 × L298N Dual H-Bridge Motor Driver Module
🚚 Dream RC is giving you the best deal in Bangladesh – high quality at the lowest price!
💬 What is the L298N Motor Driver Module price in BD (Bangladesh) & why buy from us?
The L298N Motor Driver Module current price in Bangladesh is 159 BDT.
From us – Dream RC, you can get L298N Motor Driver Module at the most affordable price with the lowest delivery charges & fast shipment all over Bangladesh.
